Sintered wire mesh metal filter cloth is a metal plate produced from multilayer stainless steel wire meshes, and sintered into one metal panel. It is usually comprises of 5 layer or 6-8 layer meshes, which may be the protective the mesh layer, the filter mesh layer, the protection mesh layer, the reinforcement mesh layer, and the reinforcement mesh layer.
With high mechanical strength and wide filter rating ranges, sintered filters are a new appropriate materials for filtration used in food, beverage, water treatment, dust removing, pharmaceutical, and polymer industry. The materials of sintered wire mesh generally is stainless steel 304, SS316,SS316L, but Alloy Steel Hastelloy, Monel, Inconel and other metal or alloy as materials are also available according to customers filter process requirements.
Sintered stainless steel filter is the most extensively used type among all the materials due to its excellent chemical stability and long service life. The protect mesh layer and filter layer are fine stainless steel woven wire mesh, and reinforcement mesh layer can be plain woven, dutch woven type wires or perforated metal sheet.
Plain weave sintered square woven wire mesh has good permeability features and low resistance to flow. It can be designed with any number and combination of square plain weave wire mesh layers to accomplish particular flow and filtration characteristics. Its filter rating range can be from 1 um to 200 um, and max plate sizes are up to 1200 × 1500 mm.

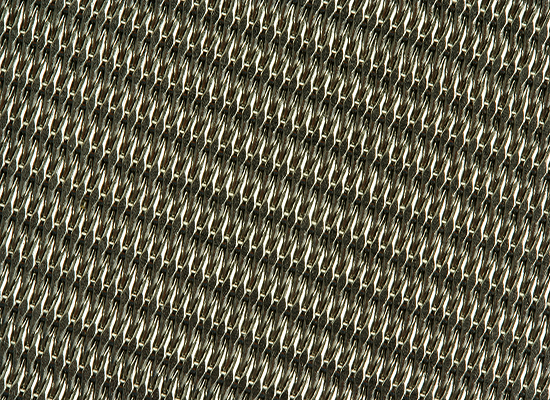

Dutch woven sinter wire mesh plate has evenly spaced openings and steady air permeability to flow, and has very excellent mechanical strength, commonly utilized in powder transport, laboratory fluid bed, driers, coolers and other dry solid materials.
