You are here: Home / Products / Type D Sintered Wire Mesh / Type D Sintered Wire Mesh
Product Details

Type D Sintered Wire Mesh

Share to:

The product is overlapped and stacked up by 2 or 3 layers of plain dutch woven wire mesh with equal hole size, after being vacuum sintered, pressurized and calendered. It has the average pore size and steady air permeability. This kind of material can be widely used in powder transport, laboratory fluid bed, driers and coolers.

Quantity:

Type D Sintered Wire Mesh Summary
The product is overlapped and stacked up by 2 or 3 layers of plain dutch woven wire mesh with equal hole size, after being vacuum sintered, pressurized and calendered. It has the average pore size and steady air permeability. This kind of material can be widely used in powder transport, laboratory fluid bed, driers and coolers.

Type D Sintered Wire Mesh Material
The standard material are SS304, SS304L, SS316, SS316L. Special Alloy Steel Hastelloy C-276, Monel 400, Inconel600, SS904, SS904L, Duplex steel 2205 are acceptable based on customer’s requirement.

Type D Sintered Wire Mesh Size
The standard size are 500×1000mm, 600×1200mm, 1000×1000mm, 1200mm×1200mm, 1200mm×1500mm, and special size in range can be finished as requirement.


Type D Sintered Wire Mesh
Type D Sintered Wire Mesh

The Structural Drawing of Type D Sintered Wire Mesh
Type D Sintered Wire Mesh

Application of Type D Sintered Wire Mesh

1. Centrifugal Separator

It can be produced into dynamic filter elements with effective filtration and separation. It is mainly used in chemical, pharmaceutical and beverage industries.

Type D Sintered Wire Mesh

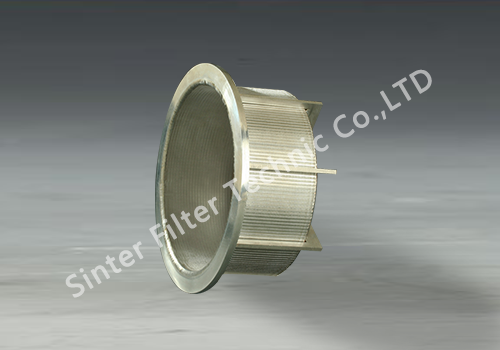

2. Conical Filter Element

Mainly used in chemical, pharmaceutical and beverage industries, it brings better diversion, filtration and separation.

Type D Sintered Wire Mesh
