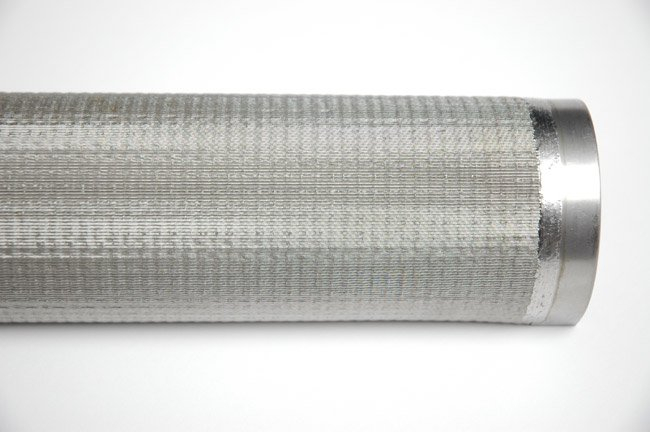

Multi Layer Sand Control Screen

Share to:

Specifications:

Standard Sheet Sizes: 18”x48”, 24”x48”. Custom sizes available upon request. Maximum laminate size without welding is 24”x60” (larger sheets available with welds, maximum panel width with welds 120”).
Standard Alloys: 304, 304L, 316, 316L, Alloy20 (also available in Inconel 600 and 625, Monel, and Hastelloy upon request).
Features and Benefits:

Heat and wear resistance
Cleanablity and reusability
Fixed Pore Geometry
Robust Non-Compressible Media

Quantity:
PMF PART NUMBER NOMINAL MICRON RATING NUMBER OF LAYERS THICNKESS (INCHES) MAX. PORE SIZE NOMINAL AIR PERMEABILITY MINIMUM POROSITY MINIMUM TENSILE
316L-60-SS3 60 μm 3 .0072 82 410 58% 550/650
316L-125-SS3 125 μm 3 .0074 164 500 56% 614/789
316L-175-SS4 175 μm 4 .0074 210 750 58% 749/854
316L-175-SS2 175 μm 2 .0060 233 550 54% 550/650
316L-250-SS4 250 μm 4 .0074 286 850 58% 681/764
316L-250-SS2 250 μm 2 .0075 300 525 52% 681/764
316L-400-SS4 400 μm 4 .0072 440 850 57% 681/764
