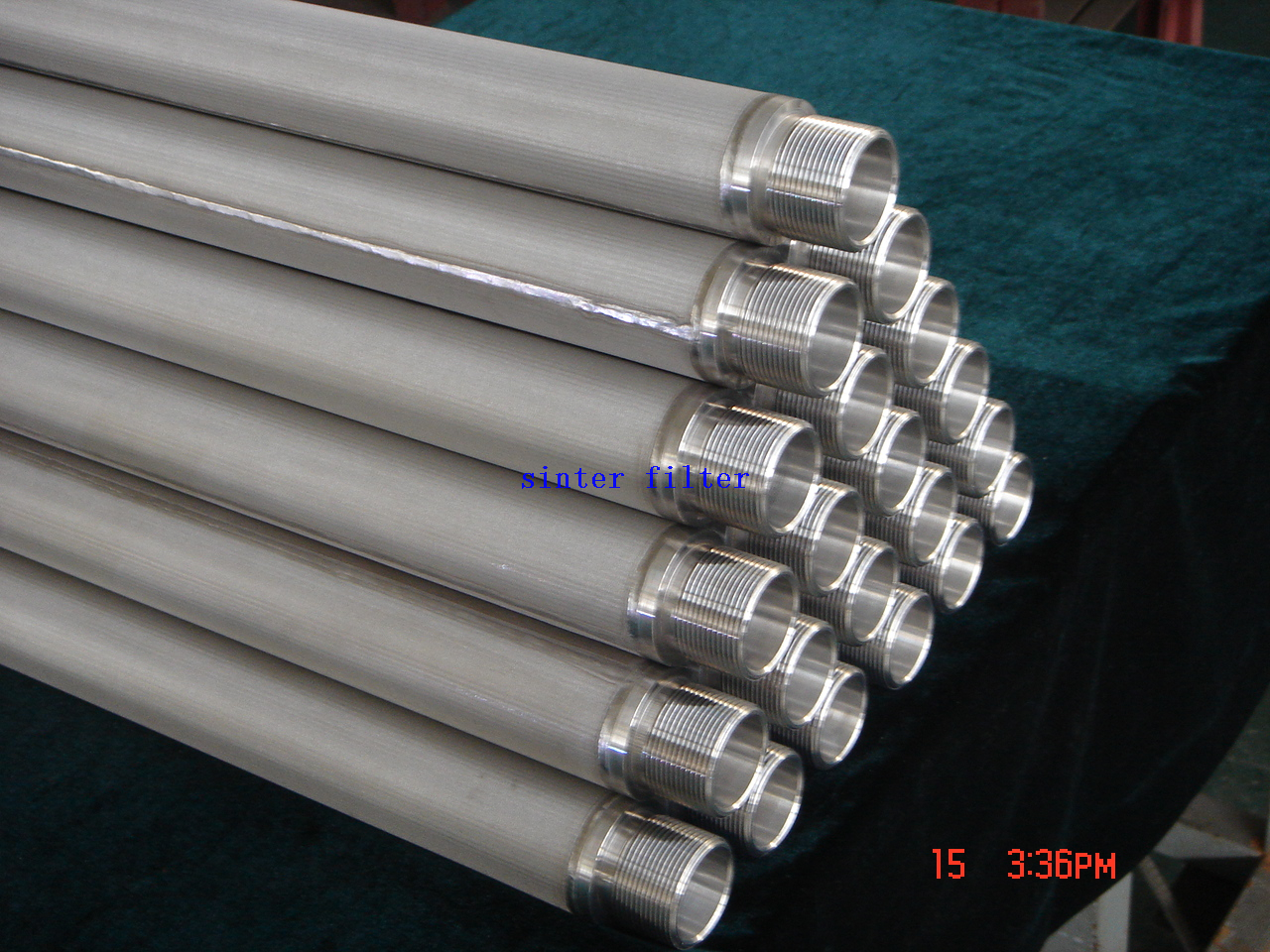

5-layer sintered wire cloth consists of 5 layers of stainless steel mesh, which is sintered together in vacuum. Cylindrical filter element boasts of good permeability, easy cleaning, high strength, good corrosion resistance, so durable at work, no immigration of materials.
Application: Cylindrical filter elements are mainly used in filtration of polyester, oil products, chemical industrial products and pharmaceutics. Also, they can be used in filtration of water and gas.
Combination of sintered wire cloth Curve of Pressure drop - Flow Rate
Cylindrical Filter Element Series
· Filter Element Model: CF-D/L-R
· CF-Cylindrical Filter Element
· D-Diameter
· L-Length
· R-Filter Rating
Model | L(mm) | D(mm) | M | Filter Area （㎡） | R(μm) | Filter Media |
CF-14/65-R | 65 | 14 | M10×1P M14×1P M14×1.5P 1/4''NPT | 0.002 | 2、5、10、15、20、30、40、75 | Stainless steel |
CF-14/250-R | 250 | 0.01 | ||||
CF-14/500-R | 500 | 0.022 | ||||
CF-14/1000-R | 1000 | 0.044 |
Model | L(mm) | D(mm) | M | Filter Area （㎡） | R(μm) | Filter Media |
CF-25/250-R | 250 | 25 | M20×1.5P | 0.019 | 2、5、10、15、20、30、40、75 | Stainless steel |
CF-25/500-R | 500 | 0.039 | ||||
CF-25/1000-R | 1000 | 0.078 | ||||
CF-30/500-R | 500 | 30 | M20×2P M20×2.5P M28×2P | 0.046 | ||
CF-30/1000-R | 1000 | 0.093 | ||||
CF-30/1500-R | 1500 | 0.140 |
Model | L(mm) | D(mm) | M | Filter Area （㎡） | R(μm) | Filter Media |
CF-50/250-R | 250 | 50 | Sealing ring or flange | 0.038 | 2、5、10、15、20、30、40、75 | Stainless steel |
CF-50/500-R | 500 | 0.078 | ||||
CF-50/1000-R | 1000 | 0.150 | ||||
CF-60/500-R | 500 | 60 | 0.094 | |||
CF-70/500-R | 500 | 70 | 0.108 | |||
CF-75/500-R | 500 | 75 | 0.115 | |||
CF-90/500-R | 500 | 90 | 0.140 | |||
CF-150/500-R | 500 | 150 | 0.230 | |||
Note: Inner support of filter element can be stainless steel perforated tube or spring. | ||||||
