Sintered Wire Mesh Filter Cartridge

Views:4     Author:Site Editor     Publish Time: 2019-06-11      Origin:Site Inquire

5-layer sintered wire cloth consists of 5 layers of stainless steel mesh, which is sintered together in vacuumCylindrical filter element boasts of good permeability, easy cleaning, high strength, good corrosion resistance, so durable at work, no immigration of materials.

Application: Cylindrical filter elements are mainly used in filtration of polyester, oil products, chemical industrial products and pharmaceuticsAlso, they can be used in filtration of water and gas.

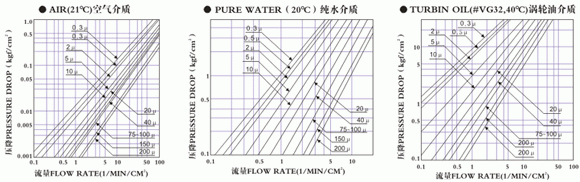

Combination of sintered wire cloth      Curve of Pressure drop - Flow Rate

 A型五层烧结网结构图片1


Cylindrical Filter Element Series

· Filter Element Model: CF-D/L-R

· CF-Cylindrical Filter Element

· D-Diameter

· L-Length

· R-Filter Rating




Model

L(mm)

D(mm)

M

Filter Area

(㎡)

R(μm)

Filter Media

CF-14/65-R

65

14

M10×1P

M14×1P

M14×1.5P

1/4''NPT

0.002

2、5101520304075

Stainless steel
sintered wire cloth

CF-14/250-R

250

0.01

CF-14/500-R

500

0.022

CF-14/1000-R

1000

0.044




Model

L(mm)

D(mm)

M

Filter Area

(㎡)

R(μm)

Filter Media

CF-25/250-R

250

25

M20×1.5P

0.019

2、5101520304075

Stainless steel
sintered wire cloth

CF-25/500-R

500

0.039

CF-25/1000-R

1000

0.078

CF-30/500-R

500

30

M20×2P

M20×2.5P M28×2P

0.046

CF-30/1000-R

1000

0.093

CF-30/1500-R

1500

0.140




Model

L(mm)

D(mm)

M

Filter Area

(㎡)

R(μm)

Filter Media

CF-50/250-R

250

50

Sealing ring or flange

0.038

2、5101520304075

Stainless steel
sintered wire cloth

CF-50/500-R

500

0.078

CF-50/1000-R

1000

0.150

CF-60/500-R

500

60

0.094

CF-70/500-R

500

70

0.108

CF-75/500-R

500

75

0.115

CF-90/500-R

500

90

0.140

CF-150/500-R

500

150

0.230

Note: Inner support of filter element can be stainless steel perforated tube or spring.
