Perforated Plate Plus Woven Mesh Sintered Wire Mesh Pack Screens;

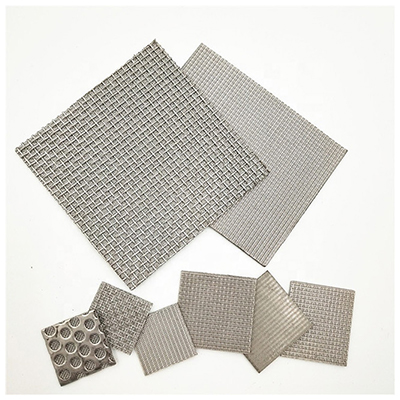

Porous sintered wire mesh plate is made of several layers of stainless steel woven wire mesh and a layer of porous metal sintering, usually composed of five layers - porous layer, buffer layer, fine mesh, protective layer and filling layer.

Features of porous sintered wire mesh plate:

Corrosion resistance,

High temperature resistant,

Wide rated filter range,

High mechanical strength,

It maintains a stable filtration rating under high pressure.

Perforated metal sintered wire mesh specifications:

Filtration membrane :2 micron - 200 micron.

Material: SUS304, 316, 316L;Or alloy steel Hastelloy, Monel, Inconel.

Standard size :500 × 1000mm, 600 × 1200mm, 1000 × 1000mm, 1200 × 1200mm.

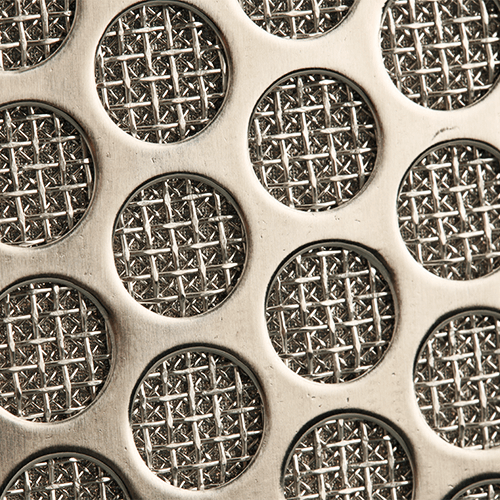

Perforated metal sintered filters provide fine filtration while protecting and preserving the filter layer.It is ideal for Wells where fine particles need to be filtered at high pressure.Also used in food, beverage, water treatment, dust removal, pharmaceutical, polymer.
